Control for model railways with SCR (CB23566E)

Details
Written by: Newton C. Braga

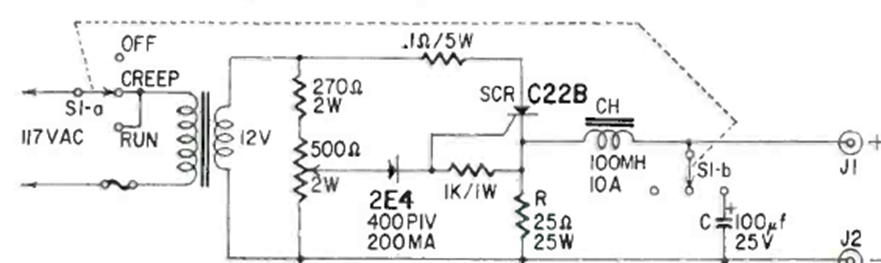

This electronic rheostat with SCR was found in the June 1964 Radio Electronics magazine. The SCR may be a modern type and the 2W potentiometer may be 470 ohms.
