Tape recorder (CB20751E)

Details
Written by: Newton C. Braga

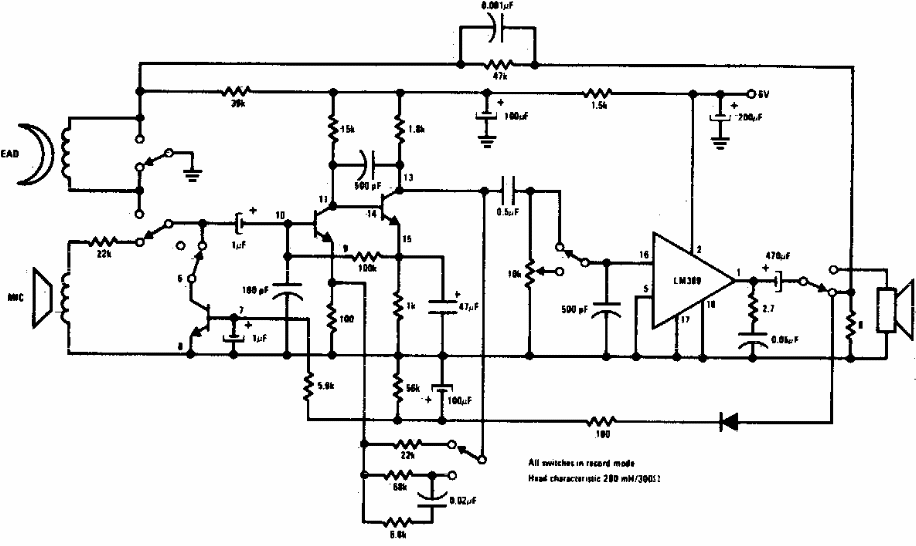

This two-year-80s circuit consists of a solution for a small portable recorder powered by cells, as it was used at the time. The circuit can serve as a reference for the recovery of old equipment.




| Clique na imagem para ampliar |
