This circuit was obtained in an Electronics World of 1969. It is a crystal oscillator with a 100 kHz unijunction transistor. The circuit does not operate with frequencies above this value.
| Clique na imagem para ampliar |

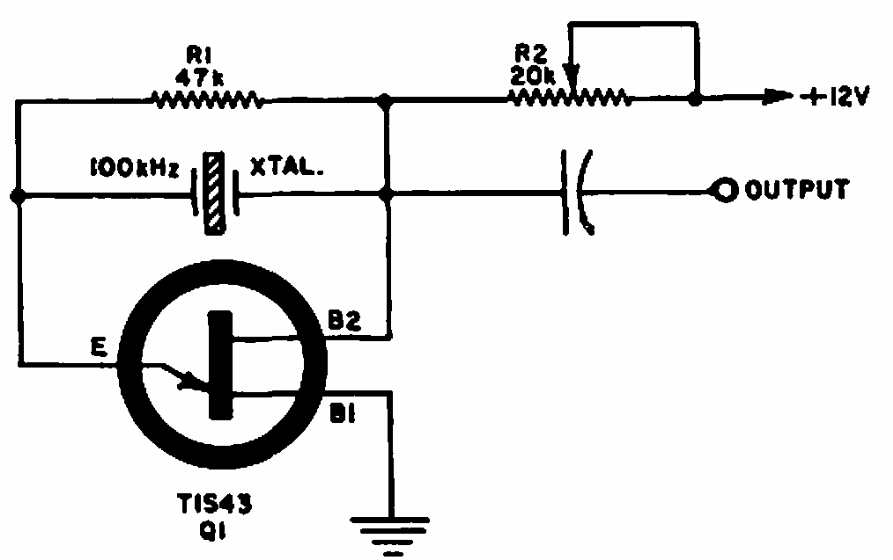

Crystal unijunction oscillator (CB20679E)
