Audio Shield (CB25430E)

Details
Written by: Newton C. Braga

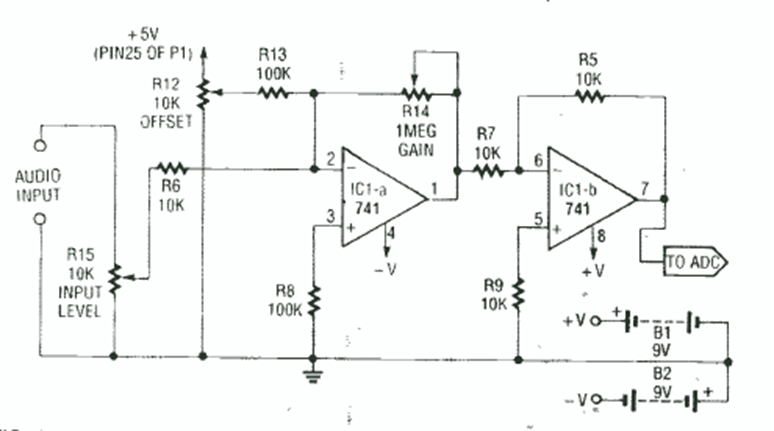

This circuit found in the February 1992 issue of Radio Electronics magazine is designed to adapt an audio signal for use in a computer's ADC. It can be adapted to operate with microcontrollers.
