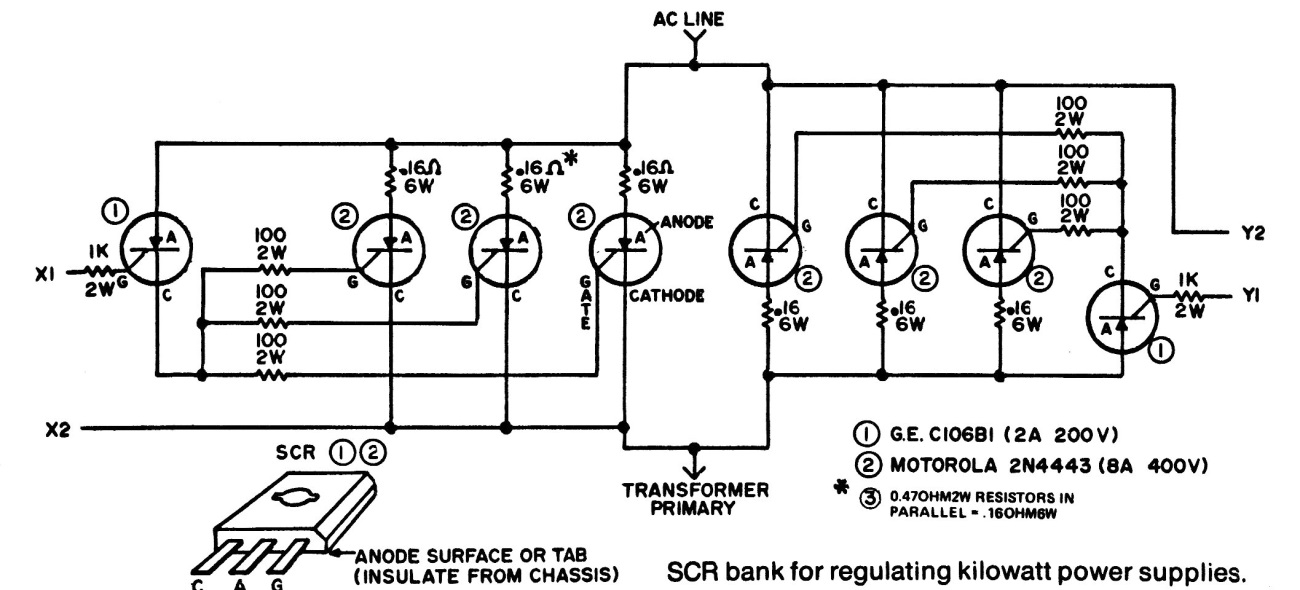

Found in an American publication from the 1980s, this circuit is designed to regulate the voltage of a 1 kW source. SCRs can be the modern equivalents of the 106 series that must be mounted on heatsinks.
| Clique na imagem para ampliar |
SCR Bank for 1 kW Sources (CB20287E)
- Details
- Written by: Newton C. Braga
