Basic dimmer with triac (CB25882E)

Details
Written by: Newton C. Braga

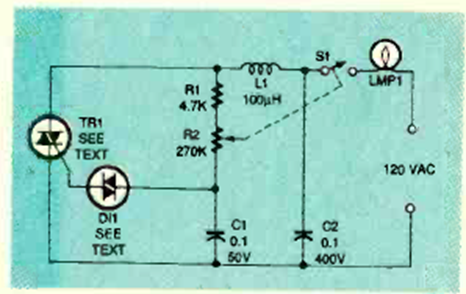

This circuit is from an Electronics Now from August 1995. The triac is according to the load that must be resistive. The circuit indicated is for the 120 V (117V) power grid.
