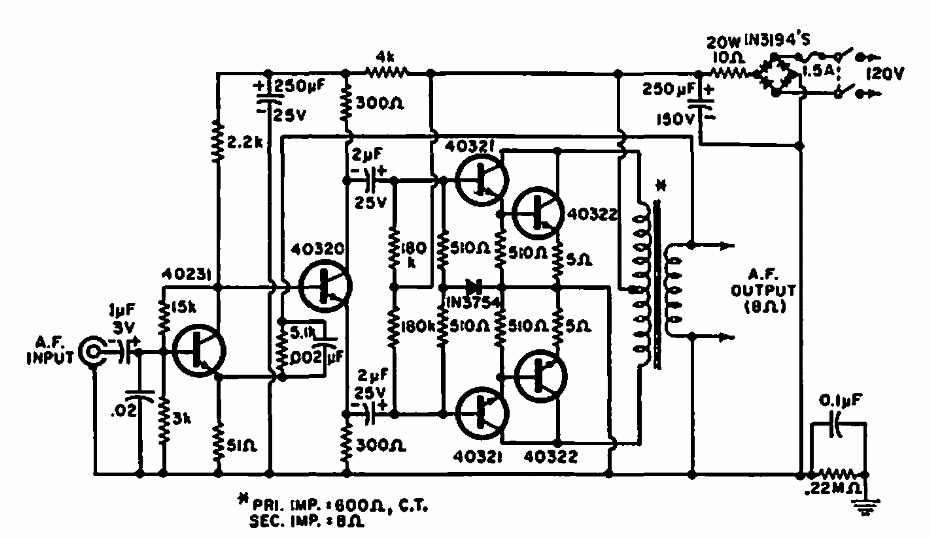

Found in an Electronics World of 1966 this circuit is intended for use with a microphone as an amplified box. The transistors are from the time and no information about the transformer is given.
| Clique na imagem para ampliar |
25 W Public Address Amplifier (CB6276E)
- Details
- Written by: Newton C. Braga
