100 W Converter (CB6585E)

Details
Written by: Newton C. Braga



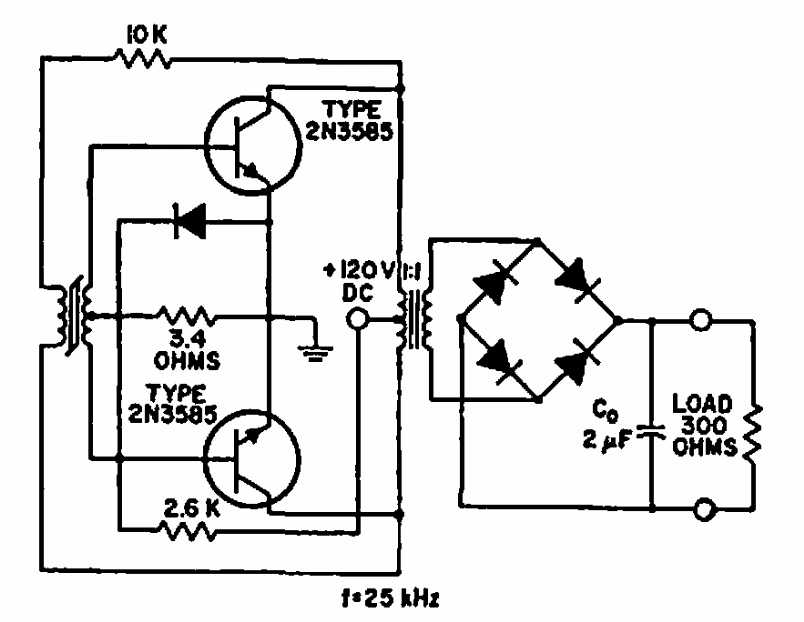

    This DC-DC converter was found in old RCA documentation. The circuit operates at 15 kHz. The characteristics of the transformers were not indicated.
