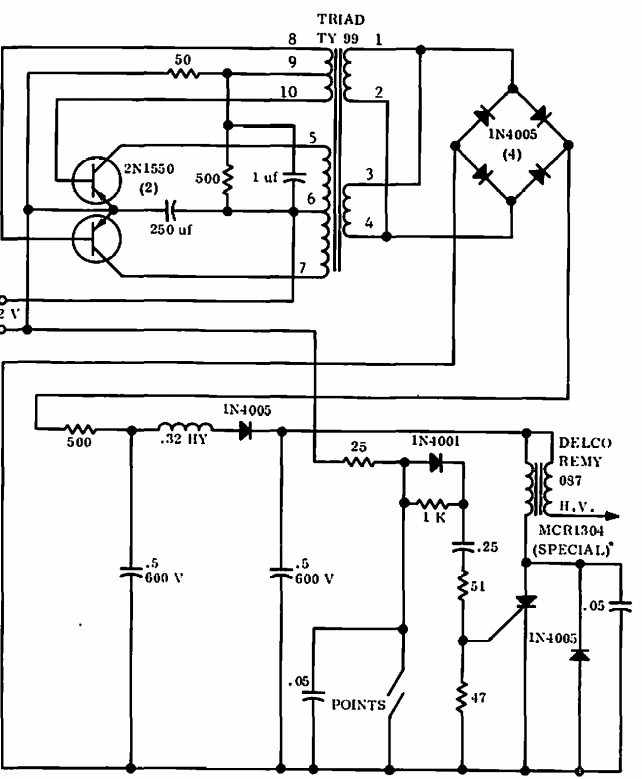

Found in a Motorola documentation from 1965, this circuit consists of an electronic ignition with a high voltage inverter. The transistors are of the time. The circuit is intended for contact breaker cars.
| Clique na imagem para ampliar |
Inverter for car ignition (CB6389E)
- Details
- Written by: Newton C. Braga
