40 W Amplifier LM1875 (CB6985E)

Details
Written by: Newton C. Braga

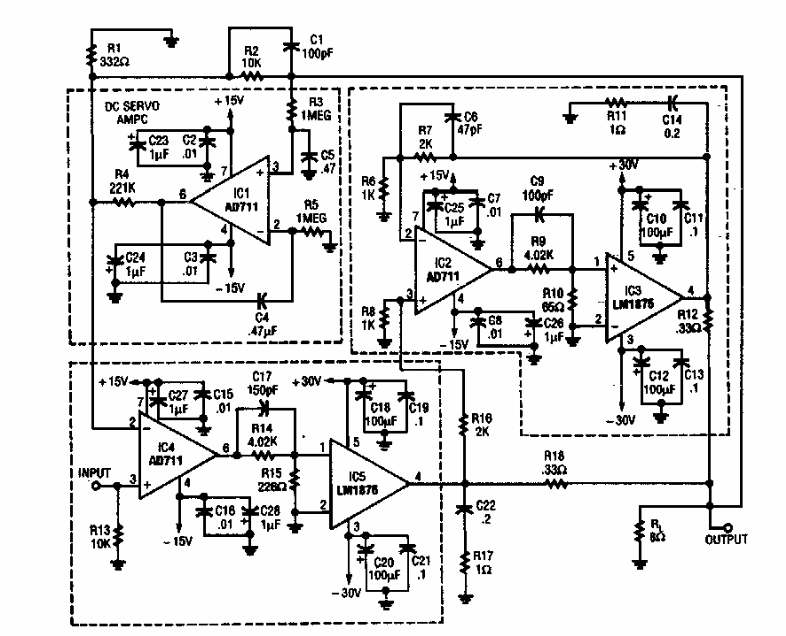

     The integrated circuit used in this Electronics Now amplifier is not very common today. However, this configuration can be found in commercial equipment of the time.




| Clique na imagem para ampliar |
