Neon Divider (CB6835E)

Details
Written by: Newton C. Braga

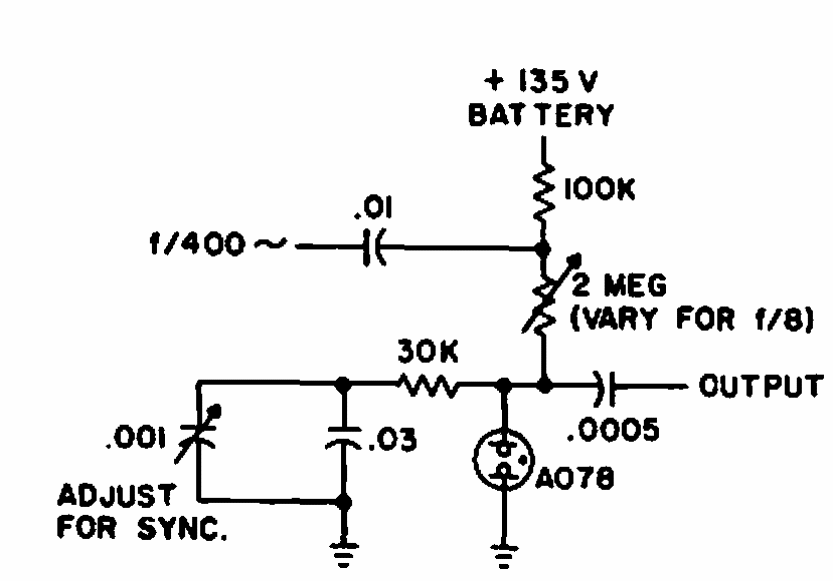

     Found in ancient American documentation, this circuit produces a pulse every 8 Hz of a 400 Hz signal.
