Sine to Square Converter (CB6586E)

Details
Written by: Newton C. Braga

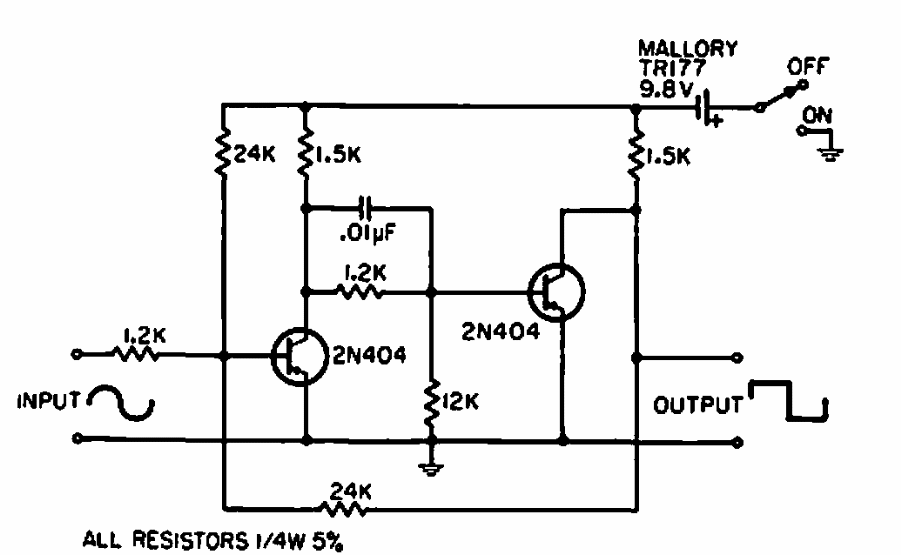

    Found in American documentation this circuit uses transistors of the time. The circuit can be made with current components. It works as a trigger working with 600 ohm signals.




| Clique na imagem para ampliar |
