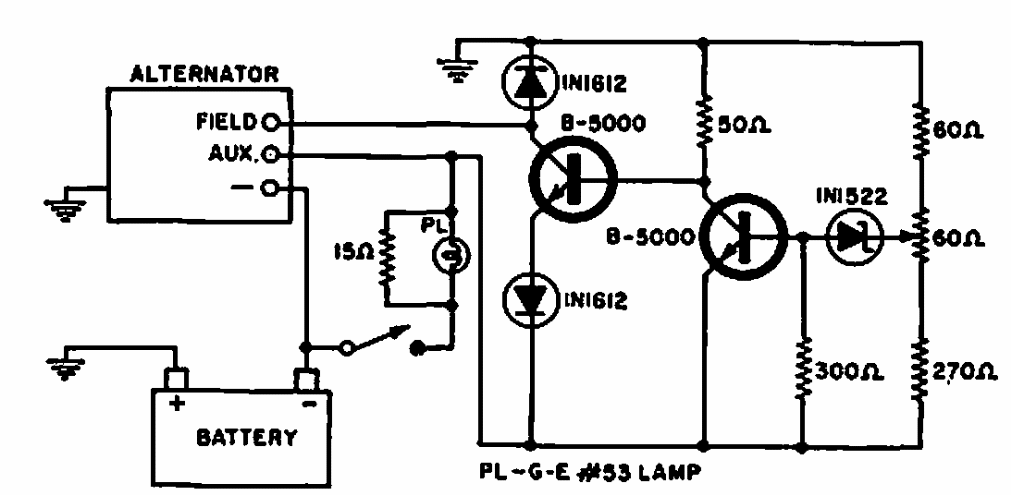

Alternator Voltage Regulator (CB6375E)

Details
Written by: Newton C. Braga



    This circuit was found in an Electronic World of 1968. The circuit uses power transistors of the time. The transistors are for 25 W of dissipation.
