Octave Generator (CB25462E)

Details: Written by: Newton C. Braga

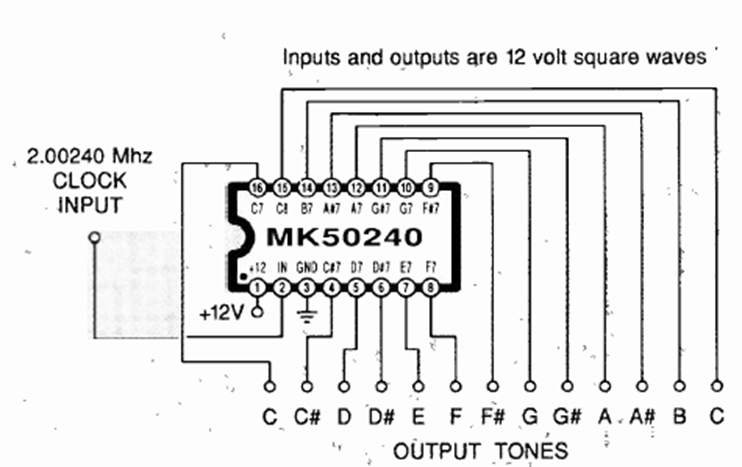

We found this circuit for musical instruments in the March 1992 Radio Electronics magazine. The circuit has outputs according to the desired scale from a crystal oscillator at the indicated frequency.
