4 Channel Temperature Sensor (CB6021E)

Details
Written by: Newton C. Braga

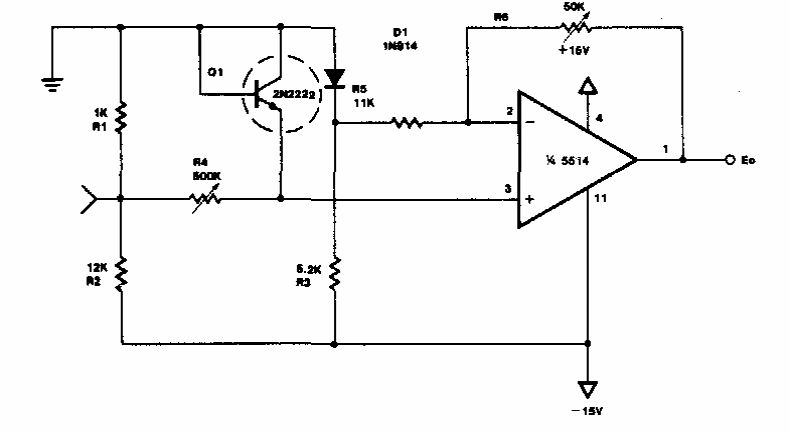

     We found this circuit in a 1980s documentation. Equivalent components can be used. The circuit senses temperatures in the range of 0 to 50º C and uses a transistor as sensor.
