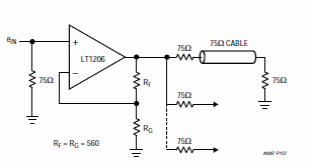

Distribution Amplifier (CB4922E)

Details: Written by: Newton C. Braga

This amplifier is from a 1990s Linear Technology component manual. The circuit requires symmetrical power supplies.
