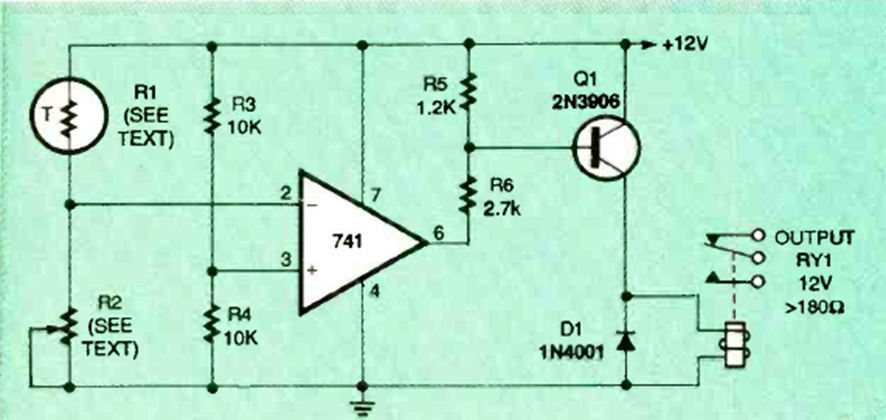

Overtemperature Switch 741 (CB25866E)

Details
Written by: Newton C. Braga



The circuit is from a June 1995 Electronics Now. The relay is power-dependent and both R1 and R2 should have close resistances in operation.
