4-Digit Digital Multimeter (CB24735E)

Details: Written by: Newton C. Braga

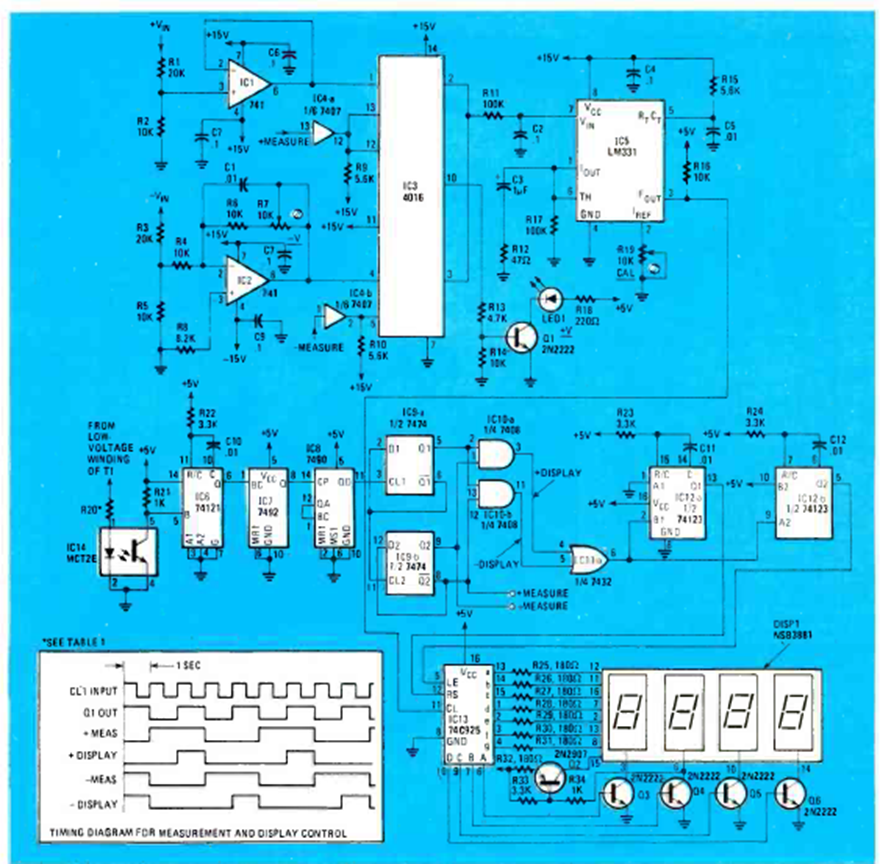

We found this circuit in the February 1983 issue of Radio Electronics magazine. The 4-digit circuit is based on dedicated integrated circuits of the time. The power supply is not shown.
