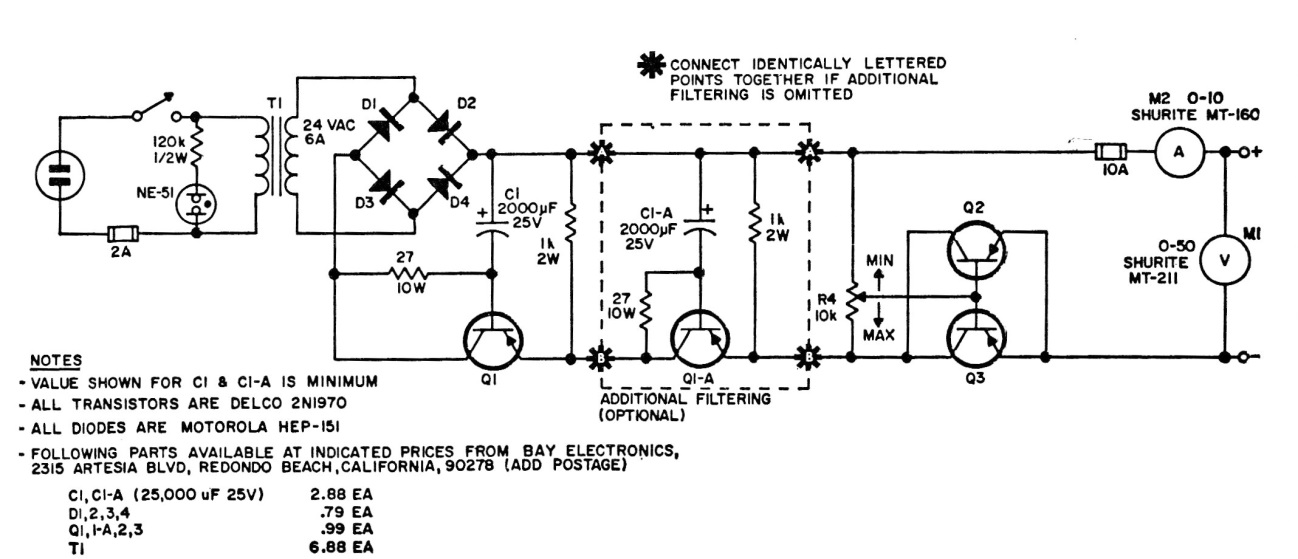

This power supply with several transistors can supply a current of several amps and a voltage of up to 24 V. The circuit is from an old documentation using transistors of the time. Modern equivalent transistors can be used.
| Clique na imagem para ampliar |
