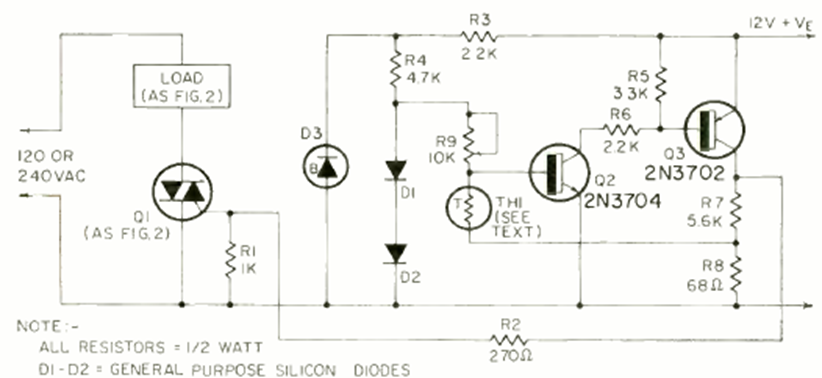

We found this circuit in the July 1970 issue of Radio Electronics magazine. The circuit drives a load at a temperature set by a potentiometer. The sensor is a thermistor with a resistance between 100 and 500 ohms.
| Clique na imagem para ampliar |
Temperature-Actuated Switch CIR24017S (CB24053E)
- Details
- Written by: Newton C. Braga
