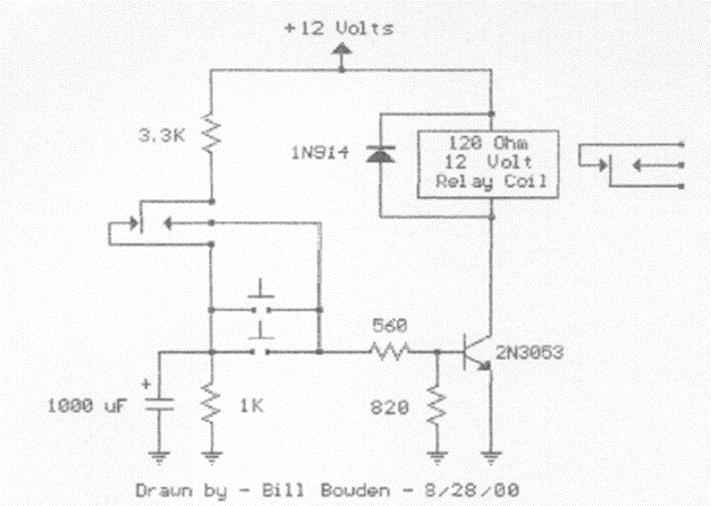

We found this circuit in documentation from the 90s. The circuit has a latch. The power supply must be in accordance with the relay and the transistor can be a general-purpose transistor with a current capable of activating the relay.
