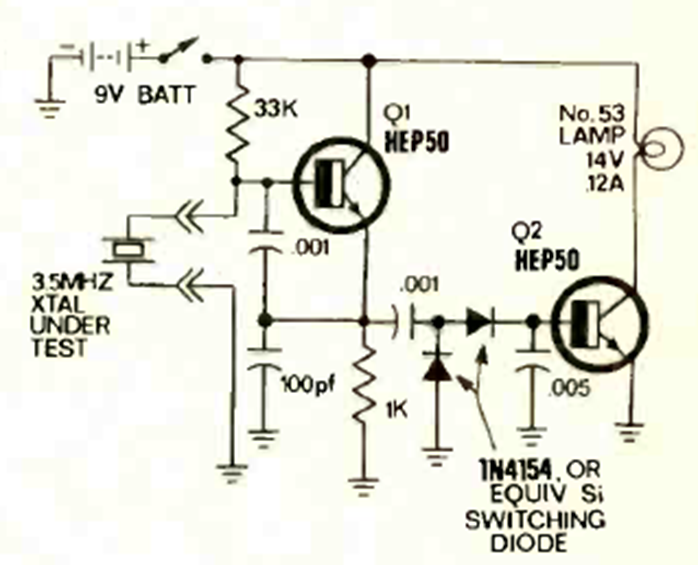

This circuit was originally designed for testing crystals used in color televisions, but it works for any crystal up to about 20 or 30 MHz. The circuit is from a Radio Electronics magazine from December 1971.
| Clique na imagem para ampliar |
Crystal Tester (CB24174E)
- Details
- Written by: Newton C. Braga
