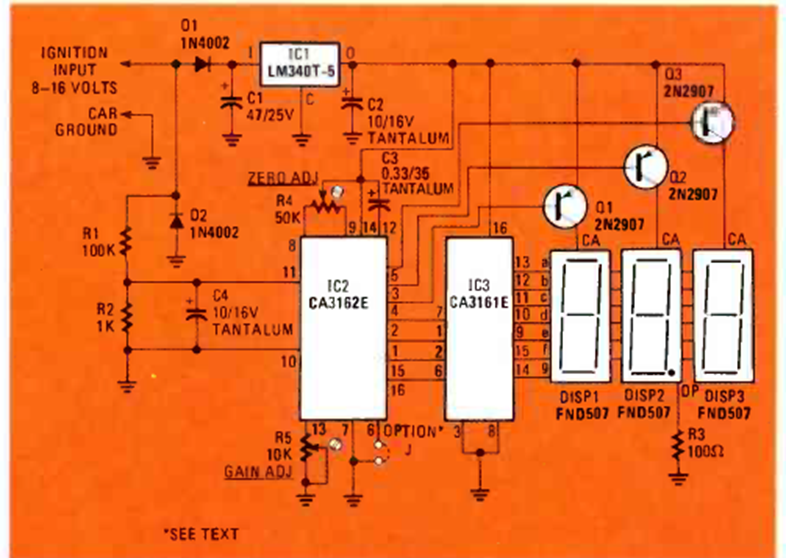

Indicated for automotive applications, this circuit was published in the July 1983 issue of Radio Electronics magazine. The circuit can be adapted for other purposes. Dedicated integrated circuits are difficult to obtain today.
| Clique na imagem para ampliar |
