LM379 Amplifier (CB24812E)

Details
Written by: Newton C. Braga

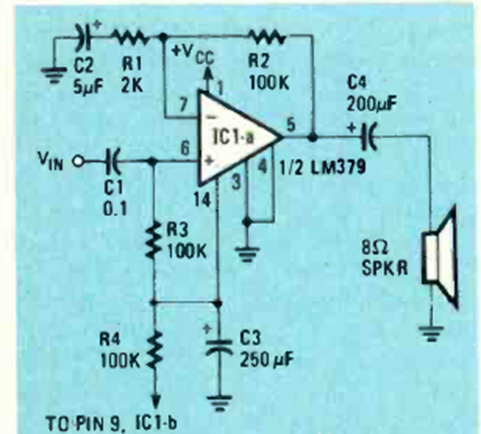

This audio amplifier was found in the July 1984 issue of Radio Electronics magazine. The supply voltage and power should be found in the component's datasheet.
