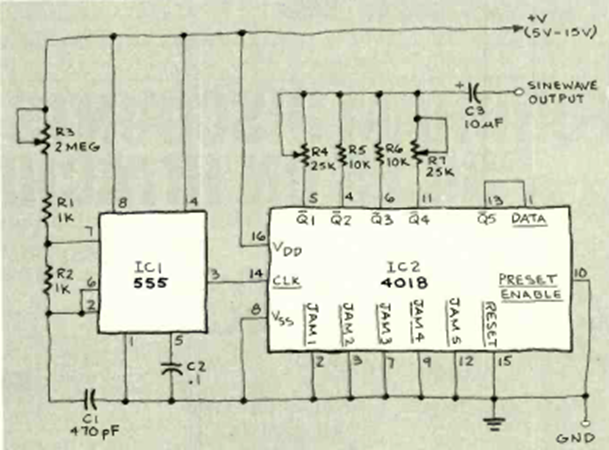

CMOS Sine Wave Generator (CB24828E)

Details
Written by: Newton C. Braga



This circuit appears at various points in this section from various sources and with variations. This one is from a Radio Eklectronics from August 1984. The frequency is adjusted by adjusting the 555.
