709 Amplifier (CB24230E)

Details
Written by: Newton C. Braga

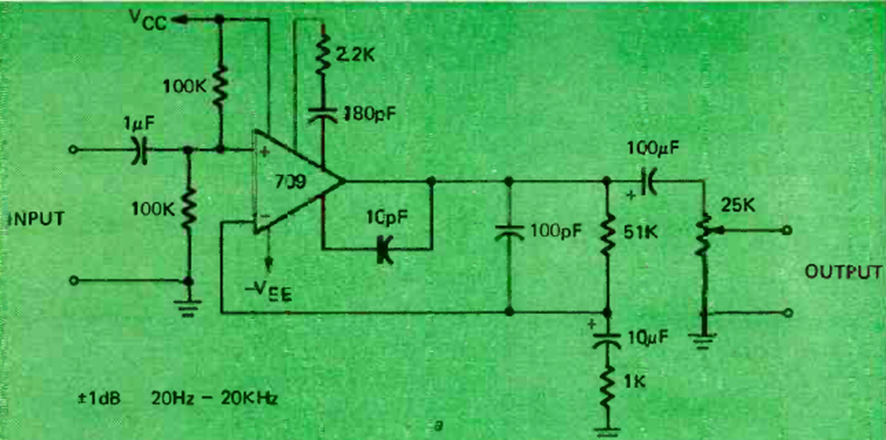

With distortion of less than 1 dB from 10 Hz to 20 kHz this circuit was found in the December 1972 issue of Radio Electronics magazine. The amplifier is a type that preceded the 741, the 709.
