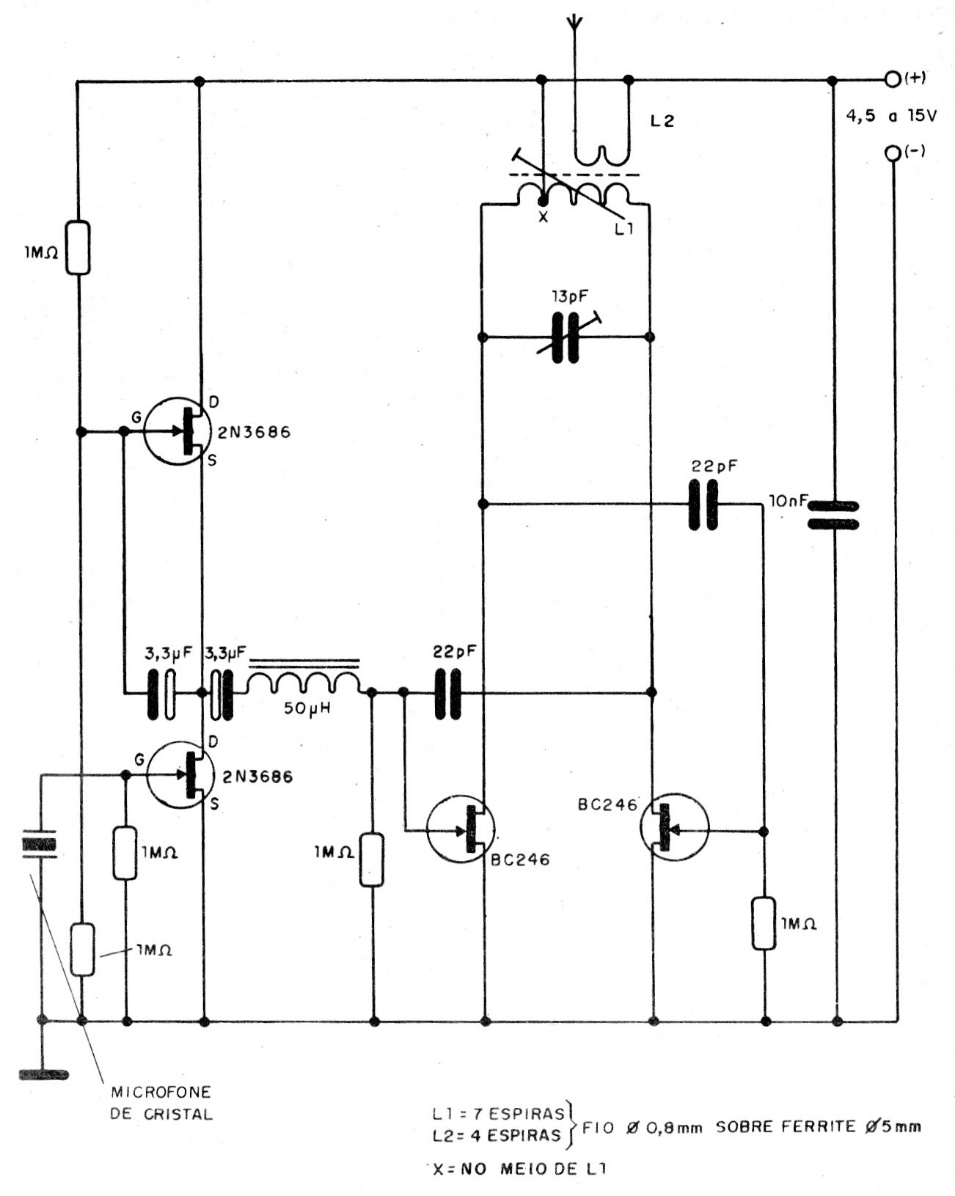

This transmitter circuit for the 27 MHz band uses 4 common FETs and has the details of the coils provided next to the diagram. The range depends on the sensitivity of the receiver. We found this configuration in documentation from the 90s.
| Clique na imagem para ampliar |
