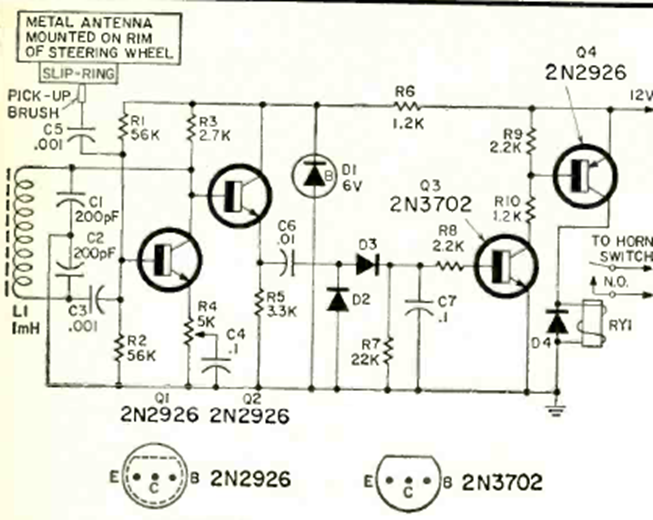

This approach alarm circuit was found in the September 1970 Radio Electronics issue. The 1 mH coil is wound on a ferrite rod. The relay is 12 V sensitive.
| Clique na imagem para ampliar |
Approach Alarm (CB24079E)
- Details
- Written by: Newton C. Braga
