Band Pass Filter (CB19687E)

Details
Written by: Newton C. Braga

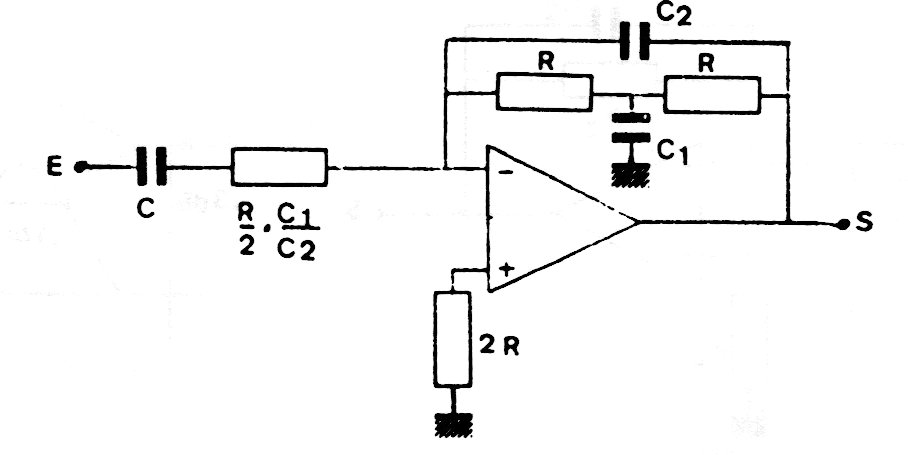

This bandpass filter has a simple feedback system. The component values can be calculated using the formulas found in the math section.






| Clique na imagem para ampliar |
