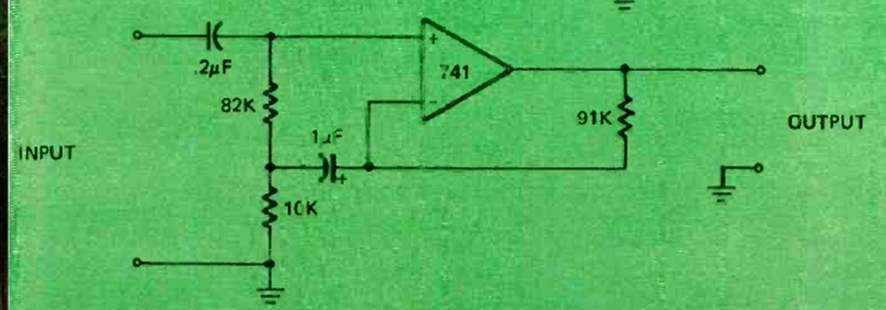

This is a traditional 741 configuration with gain close to 100. We found it in the December 1972 Radio Electronics magazine. The power source must be dual.
| Clique na imagem para ampliar |
741 Amplifier (CB24233E)
