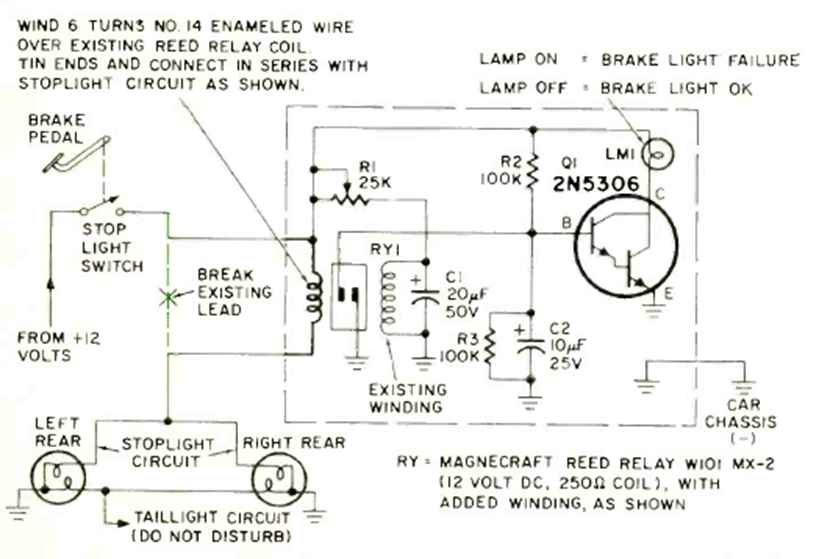

This old automotive circuit was found in an August 1971 Radio Electronics magazine article. The transistor is a Darlington transistor rated for the wattage of the bulb.
| Clique na imagem para ampliar |
Tail Light Monitor (CB24157E)
- Details
- Written by: Newton C. Braga
