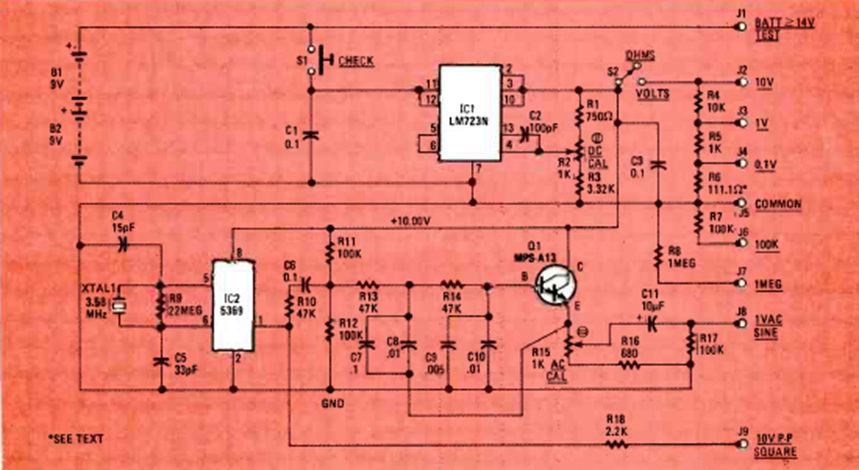

Indicated for calibrating digital instruments and circuits, this circuit was found in the June 1982 issue of Radio Electronics magazine. The circuit is based on components that are still available.
| Clique na imagem para ampliar |
Time Base (CB24704E)
