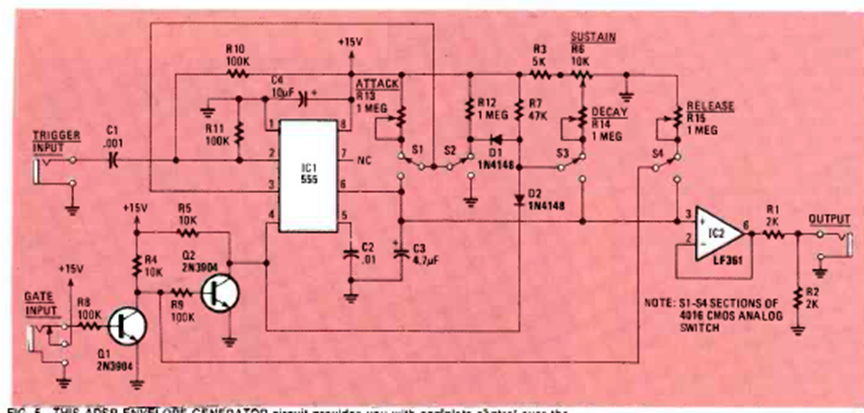

This synthesizer circuit was found in a Radio Electronics magazine from May 1983. The circuit uses common components and does not require a balanced power supply.
| Clique na imagem para ampliar |
Synthesizer envelope Generator (CB24746E)
- Details
- Written by: Newton C. Braga
