LED Display with LM3914 (CB24651E)

Details
Written by: Newton C. Braga

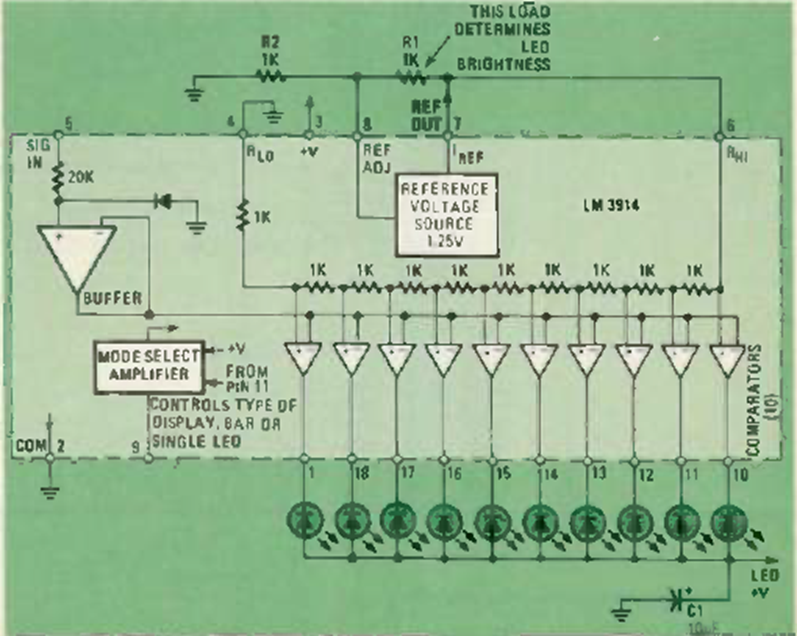

This basic circuit showing the LM3914 “inside” was published in the October 1980 issue of Radio Electronics magazine. Note that R1 determines the brightness and that the power supply is 9 V.




| Clique na imagem para ampliar |
