Simple Electronic Organ (CB24026E)

Details
Written by: Newton C. Braga

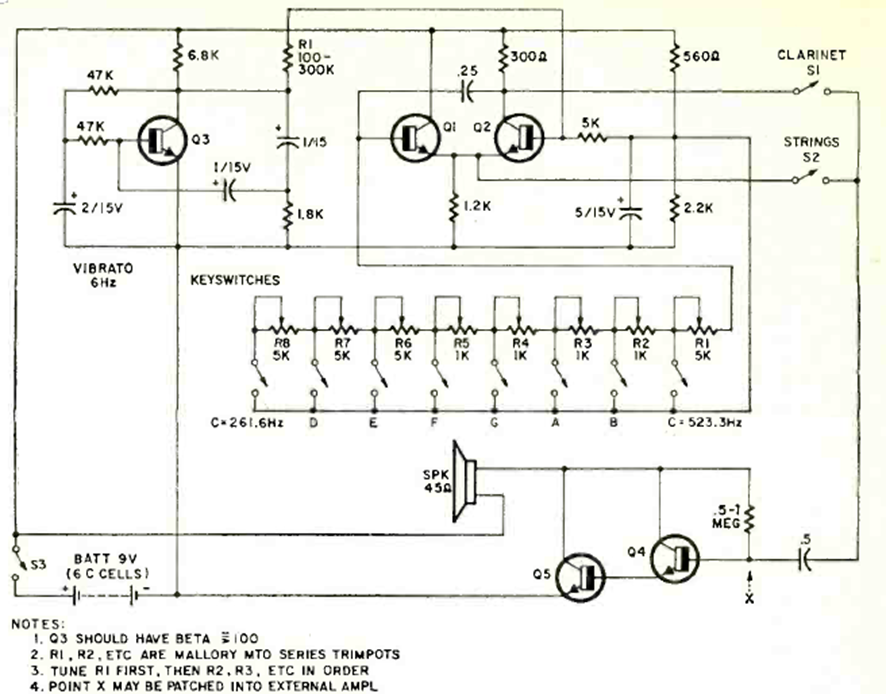

This toy transistorized organ was found in the May 1970 issue of Radio Electronics magazine. The trimpots are adjusted to the musical notes according to the key.
