100W Power Meter (CB24527E)

Details
Written by: Newton C. Braga

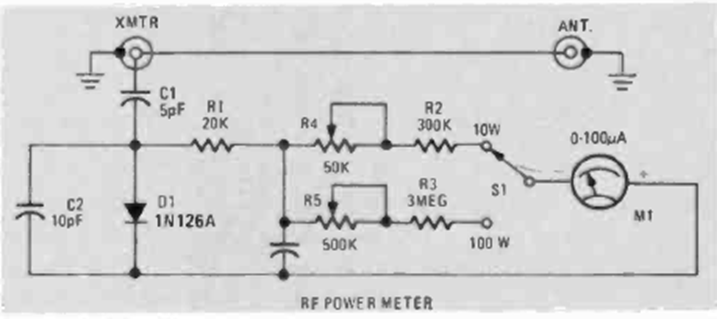

This circuit was obtained from the October 1977 Radio Electronics magazine. The meter is analog, and the maximum selected power is 100W.
