Tone Alarm (CB23545E)

Details
Written by: Newton C. Braga

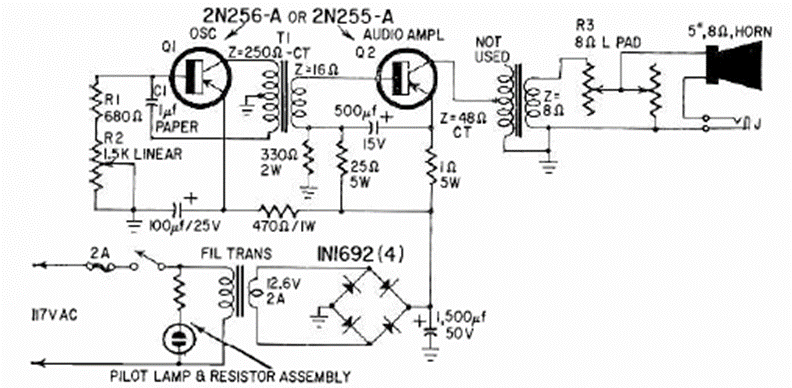

This two-transistor circuit consists of a powerful industrial-use siren. The circuit is from a Radio Electronics from November 1963. The powerful power supply is included.




| Clique na imagem para ampliar |
