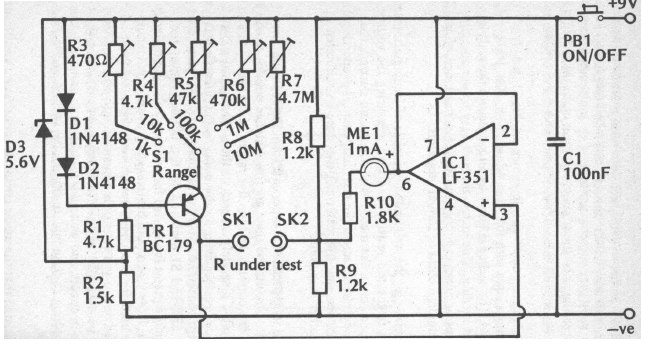

This resistance meter was found in an English documentation from 1989. The operational amplifier admits an equivalent and the transistor can be a BC558 or BC559.
| Clique na imagem para ampliar |
Ohmmeter (CB22166E)
- Details
- Written by: Newton C. Braga
