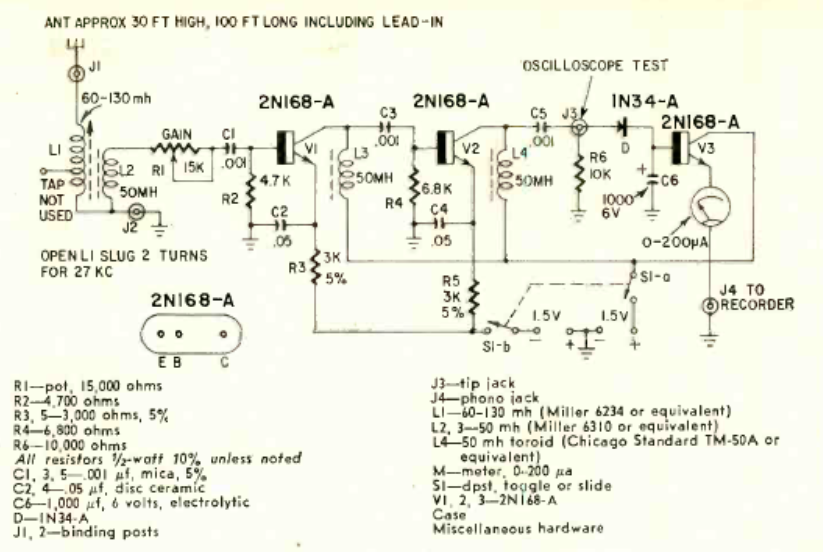

Very rapid brightness changes or flares that occur on the sun can be detected with this circuit that appeared in Radio Electronics magazine in January 1959. The indicator is analog and the circuit detects pulses that are produced in the 11 meter range
