Intercom (CB22181E)

Details
Written by: Newton C. Braga

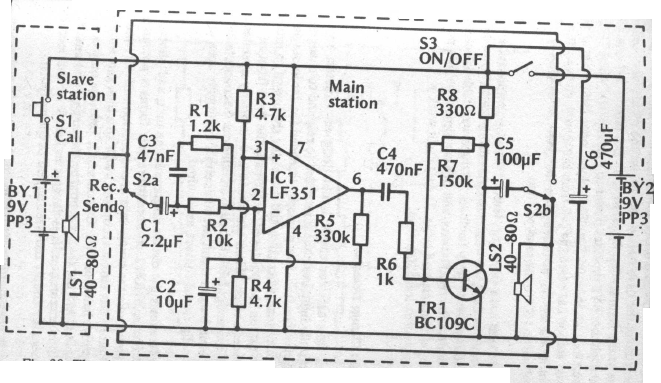

This wired intercom circuit was found in an English publication from the 80's. The integrated circuit can be replaced by an equivalent, just like the transistor which is a general-purpose type.
