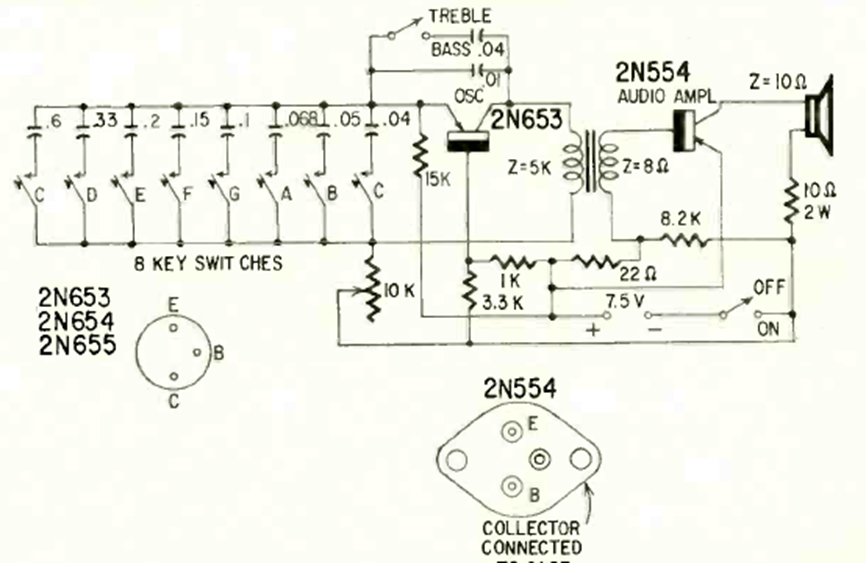

We found this simple toy organ circuit in the February 1968 issue of Radio Electronics magazine. The transistors were common at the time and the transformer was from a transistor radio output.
| Clique na imagem para ampliar |
Electronic organ (CB23934E)
- Details
- Written by: Newton C. Braga
