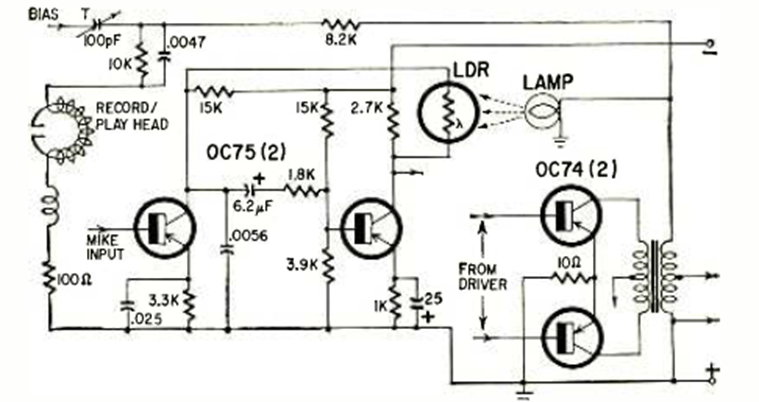

This automatic control for recording signal level was found in a Radio Electronics from September 19666. The transistors are from the time. The optocoupler principle can be adapted to more modern applications.




| Clique na imagem para ampliar |
