AC Delay (CB21433E)

Details
Written by: Newton C. Braga

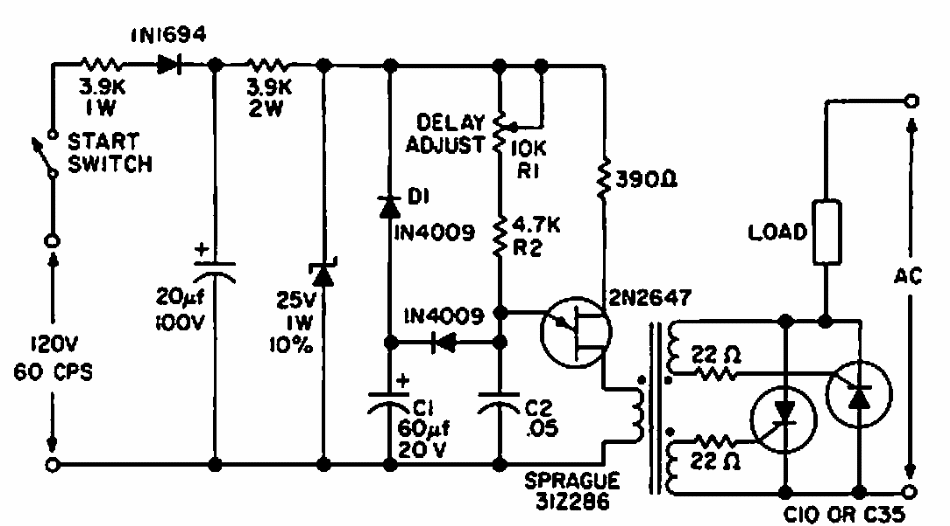

This trigger-delay circuit was found in a 1960s General Electric unijunction transistor manual. The circuit applies to the 2N2646.
