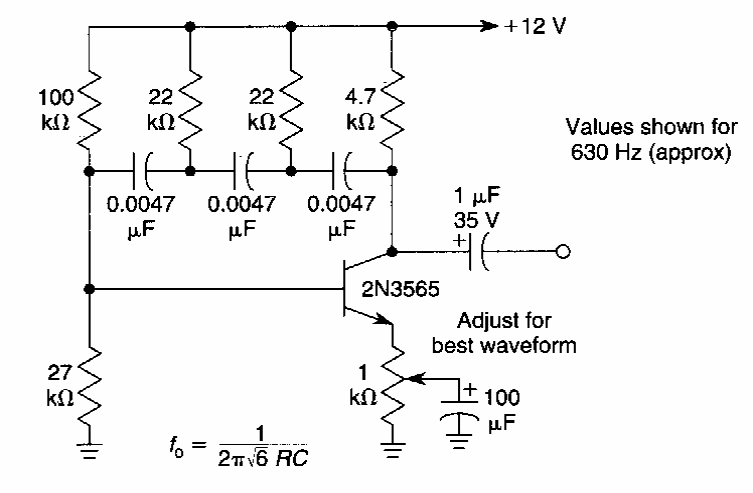

This circuit uses a general-purpose transistor and has waveform adjustment. We found it in an American documentation from the 90s.
| Clique na imagem para ampliar |
Phase Shift Oscillator (CB21116E)
- Details
- Written by: Newton C. Braga
This circuit uses a general-purpose transistor and has waveform adjustment. We found it in an American documentation from the 90s.
