Basic PLL (CB21757E)
- Details
- Written by: Newton C. Braga

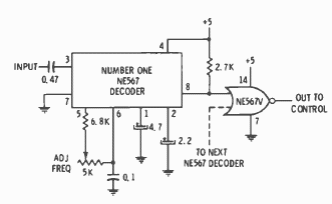

In the figure we have a basic PLL circuit with the LM567 or equivalent. The circuit is from a 1977 documentation.
