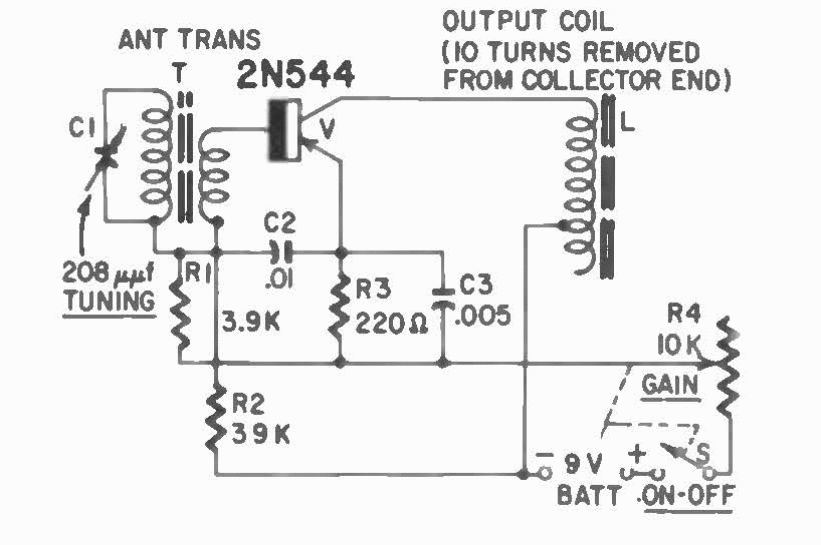

Found in a publication by Gernsback from 1960, this circuit uses germanium transistors of the time and commercial coils. It can be changed to operate with modern transistors and other wavebands.




| Clique na imagem para ampliar |
