Coffee Warmer (CB21380E)

Details
Written by: Newton C. Braga

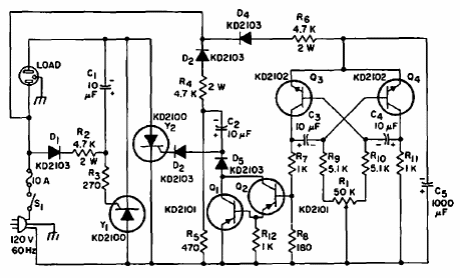

Found in a 1967 RCA manual, the purpose of this circuit is to keep the coffee warm in an electric coffeemaker. The components are from the period.
