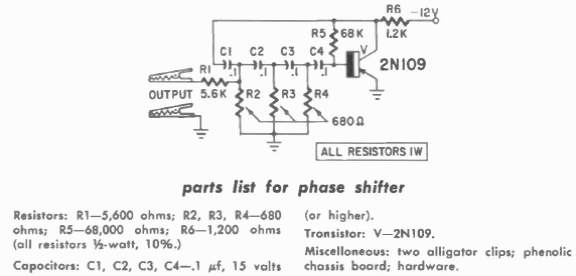

This phase shift oscillator generates sinusoidal signals in the audio range. Frequency depends on capacitors. The circuit is from a 1960 publication. The transistor is germanium from the time.
Phase shift oscillator (CB21668E)
- Details
- Written by: Newton C. Braga
