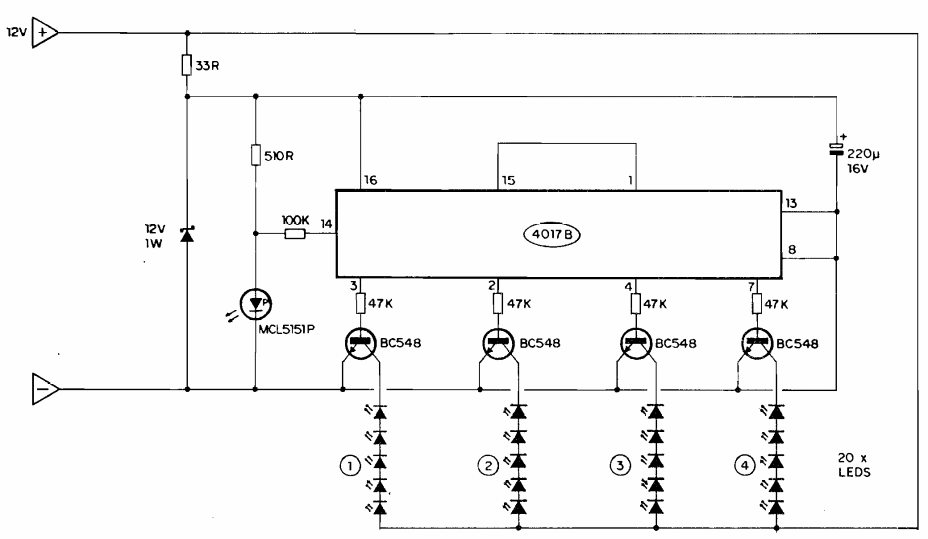

This circuit was found in documentation from the 80s. The circuit did not include resistors from 220 ohms to 1 k in series with the LEDs, which is important to limit the current in these components.
| Clique na imagem para ampliar |
Sequential Indicator (CB20342E)
- Details
- Written by: Newton C. Braga
