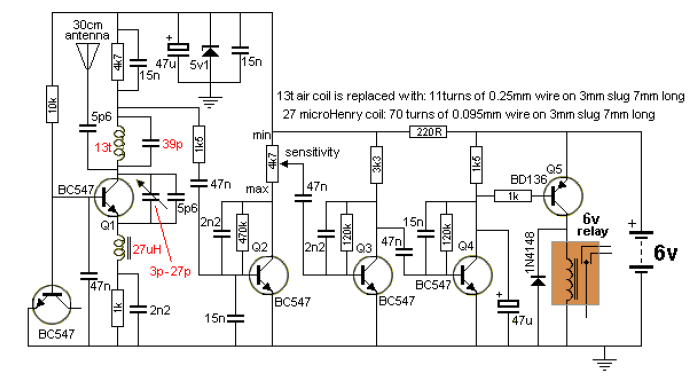

This receiver can operate with the transmitters shown in previous articles and even others described in our circuit bench. The circuit is from a recent English documentation and works with a sensitive 6V relay. The adjustment of the receiver is done in the trimmer.
